TERA 40V

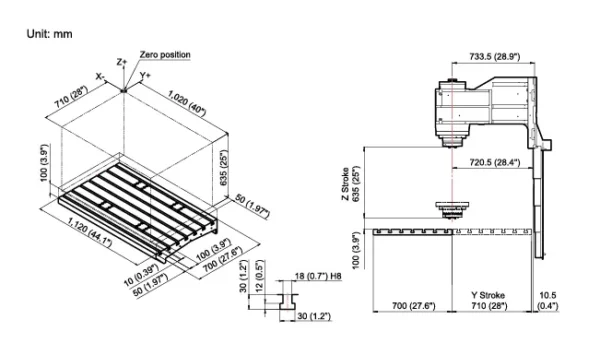

■ X Axis
■ Y Axis
■ Z Axis
■ Spindle Nose to Table Surface
■ Spindle Center

1,020 mm
710 mm
635 mm
100 – 735 mm
733.5 mm

■ Table Size
■ Max. Table Load
■ Table  Height (from the Ground)

1,120 × 700 mm
1,500 kg
900 mm

■ Rapid Feedrate - X Axis
■ Rapid Feedrate - Y Axis
■ Rapid Feedrate - Z Axis
■ Cutting Feedrate

52 m/min
52 m/min
48 m/min
0 – 20 m/min

■ Magazine Capacity
■ Tool Selection
■ Tool Shank Type
■ Pull Stud Type
■ Max. Tool (Dia. x L)
■ Without Adjacent Tool
■ Max. Tool Weight

40
Bi-Direction / Random
BT40 / DIN40
JIS6339 / DIN69872
ø75 × 260 mm
ø150 mm
7 kg

■ Spindle Taper
■ I.D. of Spindle Bearing
■ Spindle Speed
■ Max. Power
■ Max. Cutting Torque

■ Clamping Force
■ Max. Speed for Rigid Tapping

40 Taper Dual Contact
ø70 mm
50 – 15,000 rpm
31 kW
141 Nm

1,200 kgf
6,000 rpm

■ Power Consumption (220V/3PH)
■ Pneumatic Supply
■ Cutting Coolant Pump Motor
■ Base Wash Pump Motor
■ CTS Pump Motor (Opt.)
■ Coolant Tank Capacity
■ Foot Print Size (W × D)
■ Machine Height (H)
■ Packing Size (W × D × H)
■ Machine Net Weight
■ Machine Gross Weight
■ Positioning Accuracy/Full Stroke
■ Repeatability Accuracy

40 kVA
300 L/min
1.1 kW
1.1 kW
3 kW
300 L
3,137 × 2,478 mm
2,953 mm
3,400 × 2,310 × 2,550 mm
8,040 kg
8,280 kg
0.005 mm (VDI 3441)
±0.0025 mm
