Specification:

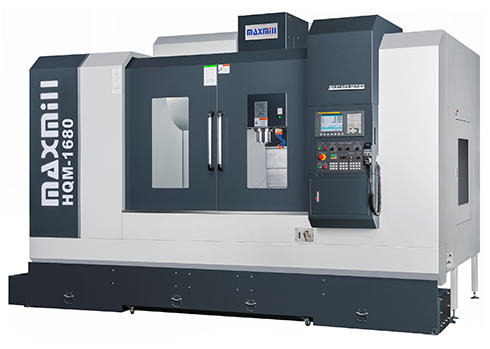

| Model | Unit | HQM-1680 | ||
|---|---|---|---|---|
| TRAVEL | X axis | mm(inch) | 1600(63.0) | |
| Y axis | mm(inch) | 800(31.5) | ||
| Z axis | mm(inch) | 750(29.6) | ||
| Spindle nose to table | mm(inch) | Std. : 75~825 (3.0~32.5)(BT40) Opt. : 40~790 (1.6~31.1)(BT50) |
||
| Spindle center to solid cloumn surface | mm(inch) | 863(34.0) | ||
| TABLE | Working area | mm(inch) | 1750 x 700 (68.9 x 27.6) |
|
| Max. loading | kg | 1200 | ||
| T-slots (No. x Width class="td-gray1" x Pitch) | mm(inch) | 5 x 18 x 125 (5 x 0.7 x 5.0) |
||
| SPINDLE | Tool shank | ---- | Std. : BT-40 / Opt. : BT-50 |
|
| Speed | rpm | Std. : 10,000 (BT-40) Opt. : 8,000 (BT-50) |
||
| Transmission | ---- | Belt Drive | ||
| Bearing lubrucation | ---- | Grease | ||
| Cooling system | ---- | Oil cooled | ||
| Spindle motor max.rating (MITSUBISHI) | kw(HP) | BT-40:15(20) / BT-50:18.5(25) | ||
| Spindle motor max.rating (FANUC) | kw(HP) | BT-40:15(20) / BT-50:18.5(25) | ||
| Axis motor max. rating (MITSUBISH) | kw | 3.5 / 3.5 / 3.5 | ||
| Axis motor max. rating (FANUC) | kw | 4.0 / 4.0 / 4.0 | ||
| FEED RATES | Rapids on X & Y & Z axis | m/min | 30 / 30 / 25 | |
| Max. cutting feedrate | m/min | 10 | ||
| TOOL MAGAZINE | Tool storage capacity | pcs | 24 arm | |
| Type of tool (optional) | type | Std. : BT-40 (CAT-40) Opt. : BT-50(CAT-50) |
||
| Max. tool diameter | mm(inch) | 76(3.0) arm | ||
| Max. tool weight | kg | 7 | ||
| Max. tool length | mm(inch) | 300(11.8) arm | ||
| AVG. CHANGING TIME (ARM) | Tool to tool | sec. | 2.7 (BT-40) |
3.8 (BT-50) |
| Air source required | kg/cm2 | 6 up | ||
| ACCURACY | Positioning (VDI 3341) | mm(inch) | P 0.01 (0.0004) | |
| Repeatability (VDI 3341) | mm(inch) | Ps 0.006 (0.0003) | ||
| DIMENSION | Machine weight (Net) | kg | 12,100 arm | |
| Power source required | KVA | 30 | ||
| Floor space (L X W X H ) | mm(inch) | 4,330 x 3,200 x 3,050 (170.5 x 125.9 x 120) |
||
| Shipment advice | ---- | 1 x 40' HQ (1 set) | ||
Standard Accessories
- Mitsubishi M80 controller, 10.4" LCD
- Spindle speed 8,000 / 10,000 / 12,000 / 20,000 rpm(depend on machine model)
- Automatic tool changer
- Full splash guard
- Heat exchanger for electric cabinet
- Automatic lubricating system
- Spindle oil cooler
- Spindle air blast system (M code)
- Spindle air blow system
- Spindle orientation
- Coolant gun and air socket
- Leveling kits
- Removable manual & pulse generator (M.P.G.)
- LED light
- Rigid tapping
- Coolant system and tank
- Cycle finish indicator and alarm lights
- RS-232C interface with cable (10 m)
- Tool Box
- Operational and maintenance manual
- Transformer
- Spindle coolant ring(M code)
- Chip flush
Optional Accessories
- Spindle speed 12,000 rpm (Belt type)
- Spindle speed 15,000 rpm (Direct drive)
- Coolant through spindle (CTS)
- German ZF gear box
- Automatic tool length measuring device
- Automatic work piece measurement system
- CNC rotary table and tailstock
- Oil skimmer
- Link/Screw type chip conveyor with chip bucket
- Linear scales (X/Y/Z axis)
- Coolant through tool holder
- Table working area:900x410mm(QMC-600)
